IN DEVELOPMENT
Educational 1U CubeSat
Learn satellite systems with this 1U CubeSat platform
$100.00In development — launch date coming soon
Bulkor type a quantity — hold Shift to step by 10
Quantity: 1- Form factor
- 3D printed frame
- Subsystems
- OBC, EPS, Solar Board
- Built for
- Students & self-learners
Orbital systems
Learn how real satellites work.
Hands-on learning
Designed for classrooms, clubs, and self-learners.
Telemetry
Explore how OBC, EPS, and solar subsystems talk to each other.
Architecture & Performance
Technical Specifications
- Form factor
- 1U, 3D-printed frame
- Subsystems
- OBC, EPS and solar board

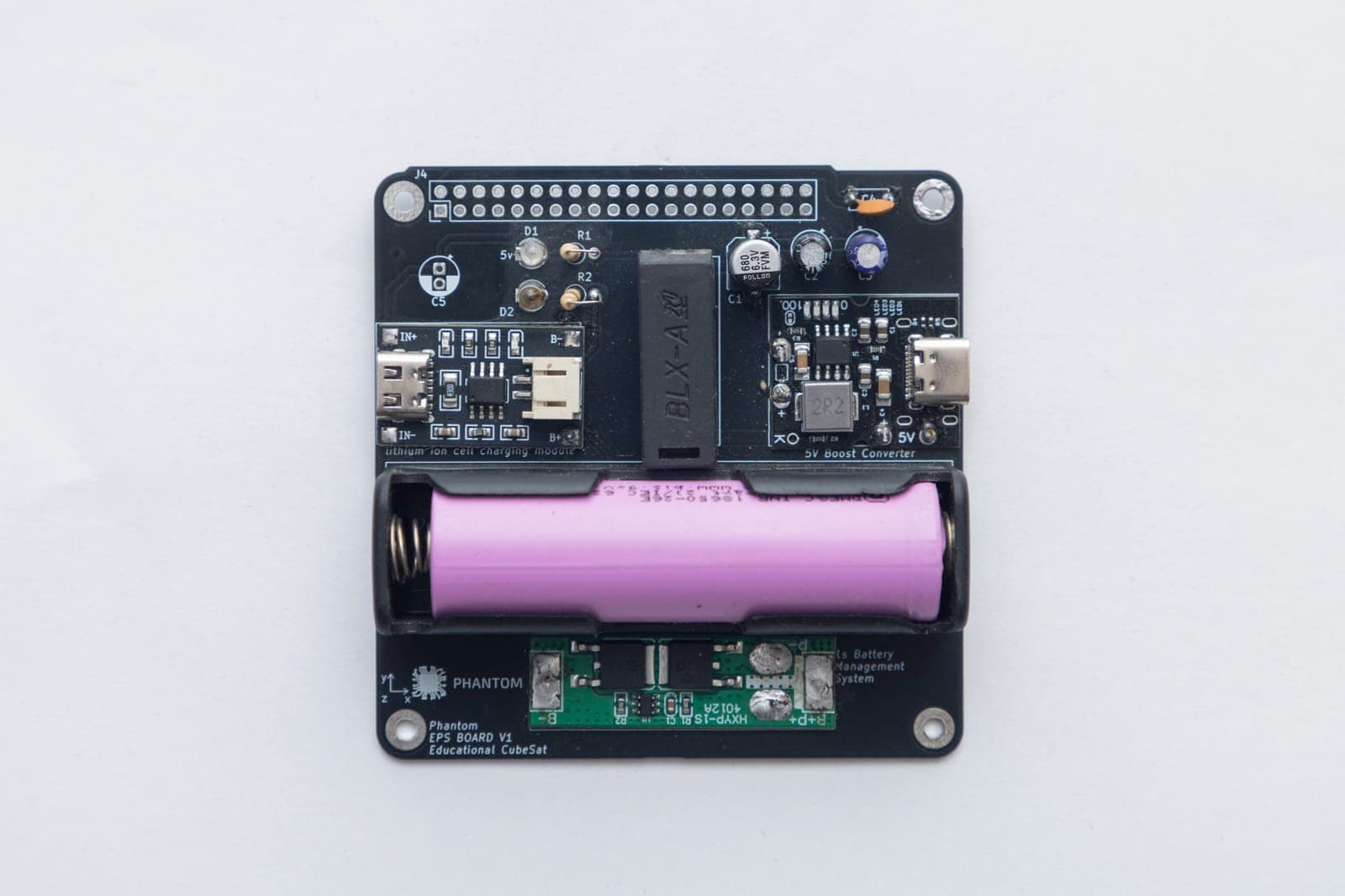

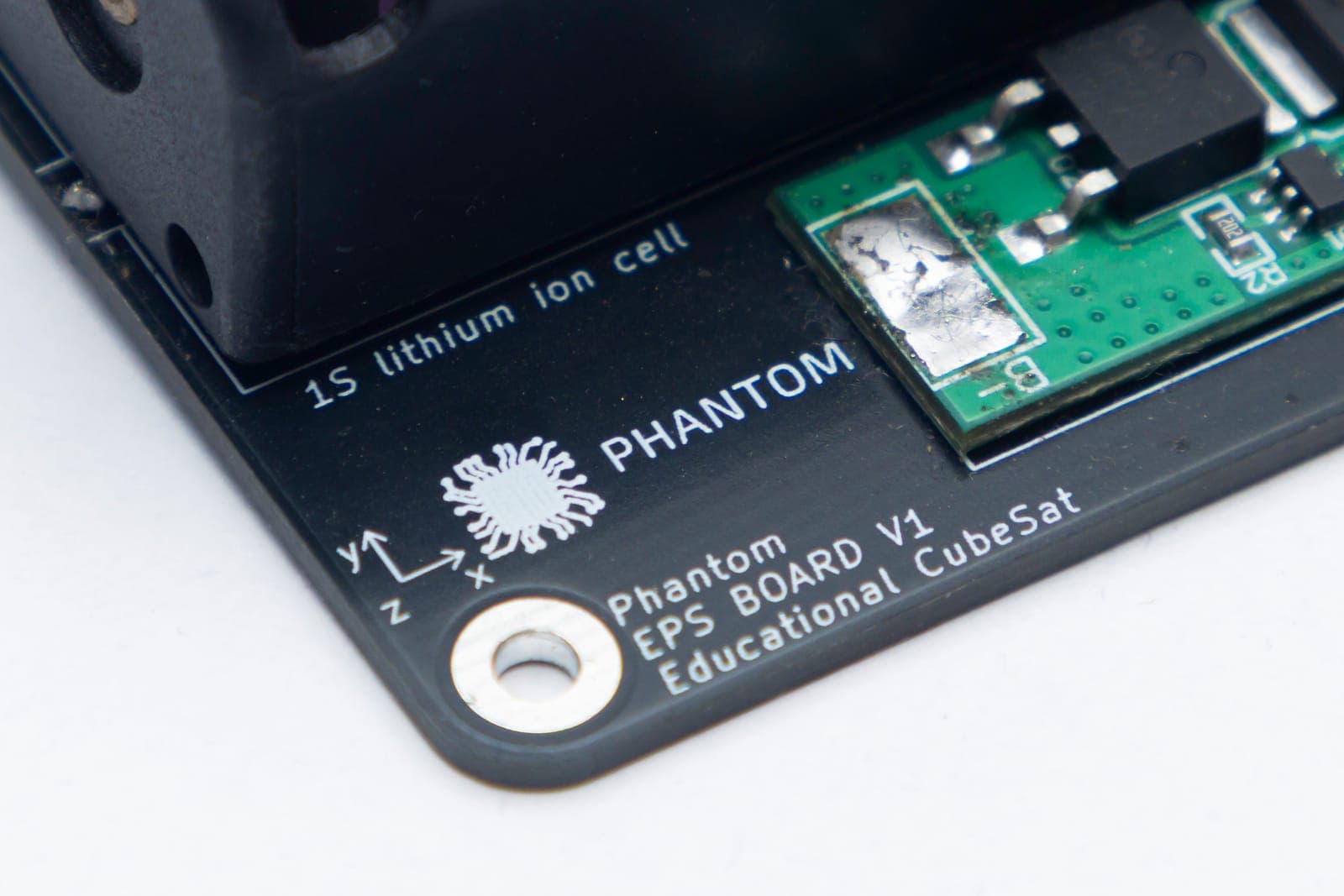

- EPS (electrical power system)
- Li-ion battery management
- OBC (on-board computer)
- STM32G-series MCU with onboard IMU, barometer and temperature sensor
- Connectivity
- BLE (Bluetooth) and RF
- Solar board
- Multi-panel solar input with individual current sensing per panel
- Programming interface
- SWD and USB-C
- Operating temperature
- 0°C to 60°C
- Built for
- Students and self-learners
