DEVELOPMENT PROTOTYPE

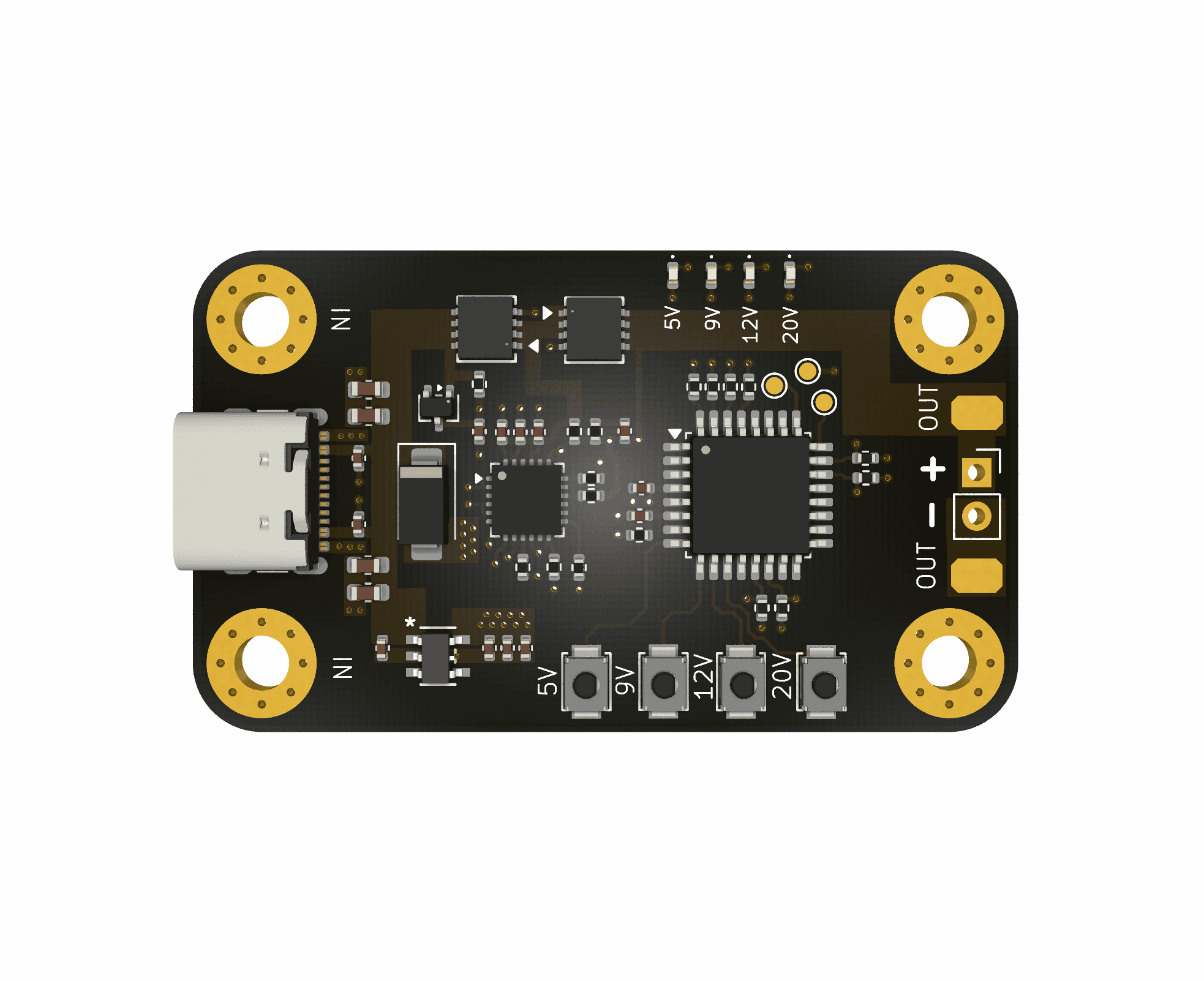

Advance USB-C Power Supply
A custom power supply for selectable, high-current voltage output.
$49.00This product has completed its final design phase and has entered the prototype stage for testing and manufacturing.
Bulkor type a quantity — hold Shift to step by 10
Quantity: 1- Input source
- USB-C 2.0
- Max output
- 20V / 3A
- PCB grade
- 4-Layer
Dynamic power
5V-20V switching for variable power needs.
High-current actuators
Powers multiple actuators without sag.
Sensitive electronics
Low-noise delivery for MCU/RF signals.
Architecture & Performance
Technical Specifications
- MCU
- STM32G030K6Tx
- PD controller
- STUSB4500QTR
- Power path
- High-efficiency STL6P3LLH6 P-MOSFETs
- Selectable output
- 5V, 9V, 12V, 20V
- Continuous current
- Up to 3A
- Input interface
- USB-C 2.0
- Voltage selection
- Push-button w/ onboard LEDs
- PCB design
- 4-layer, power optimized
- Form factor
- Ultra-compact
