DEVELOPMENT PROTOTYPE

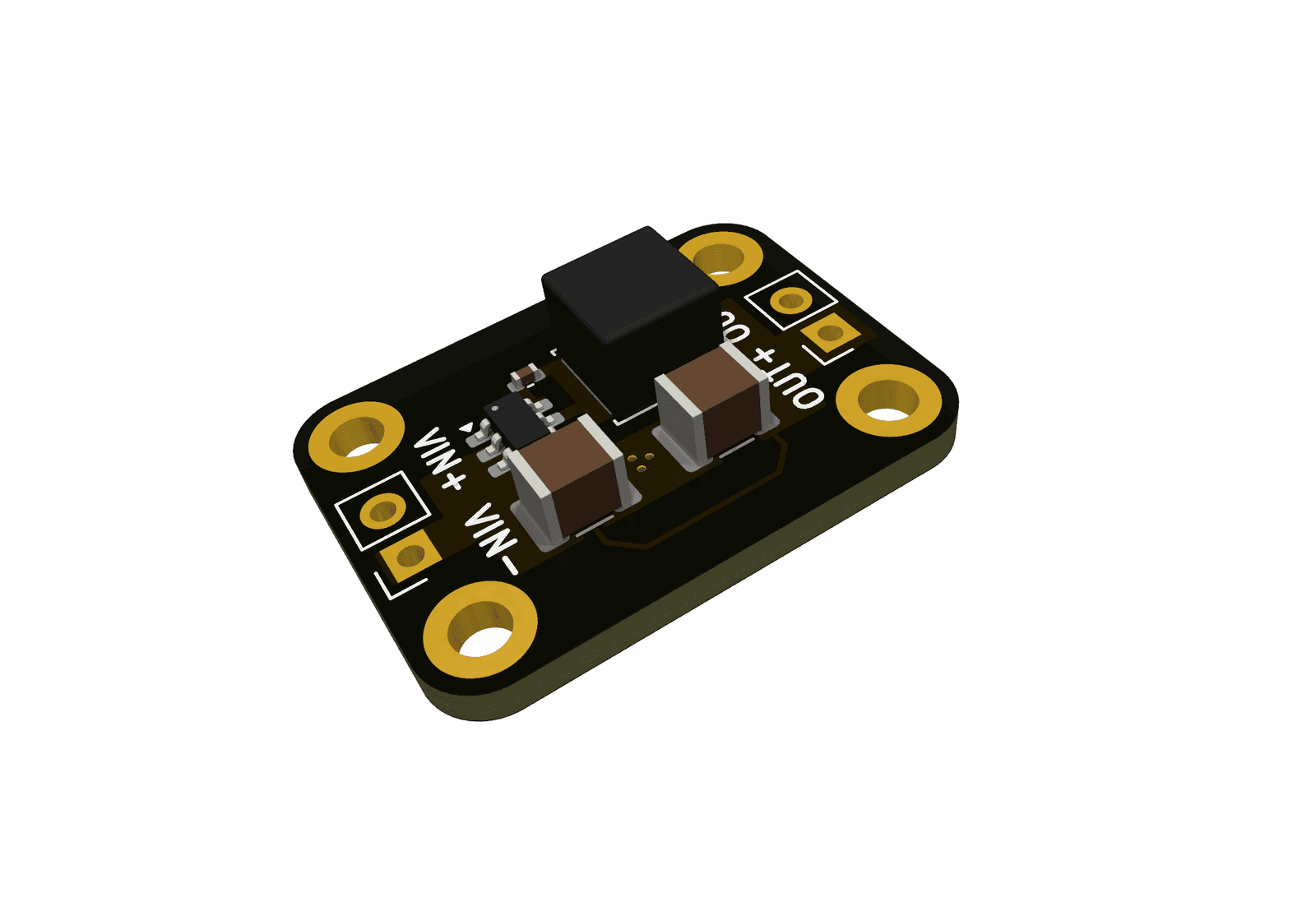

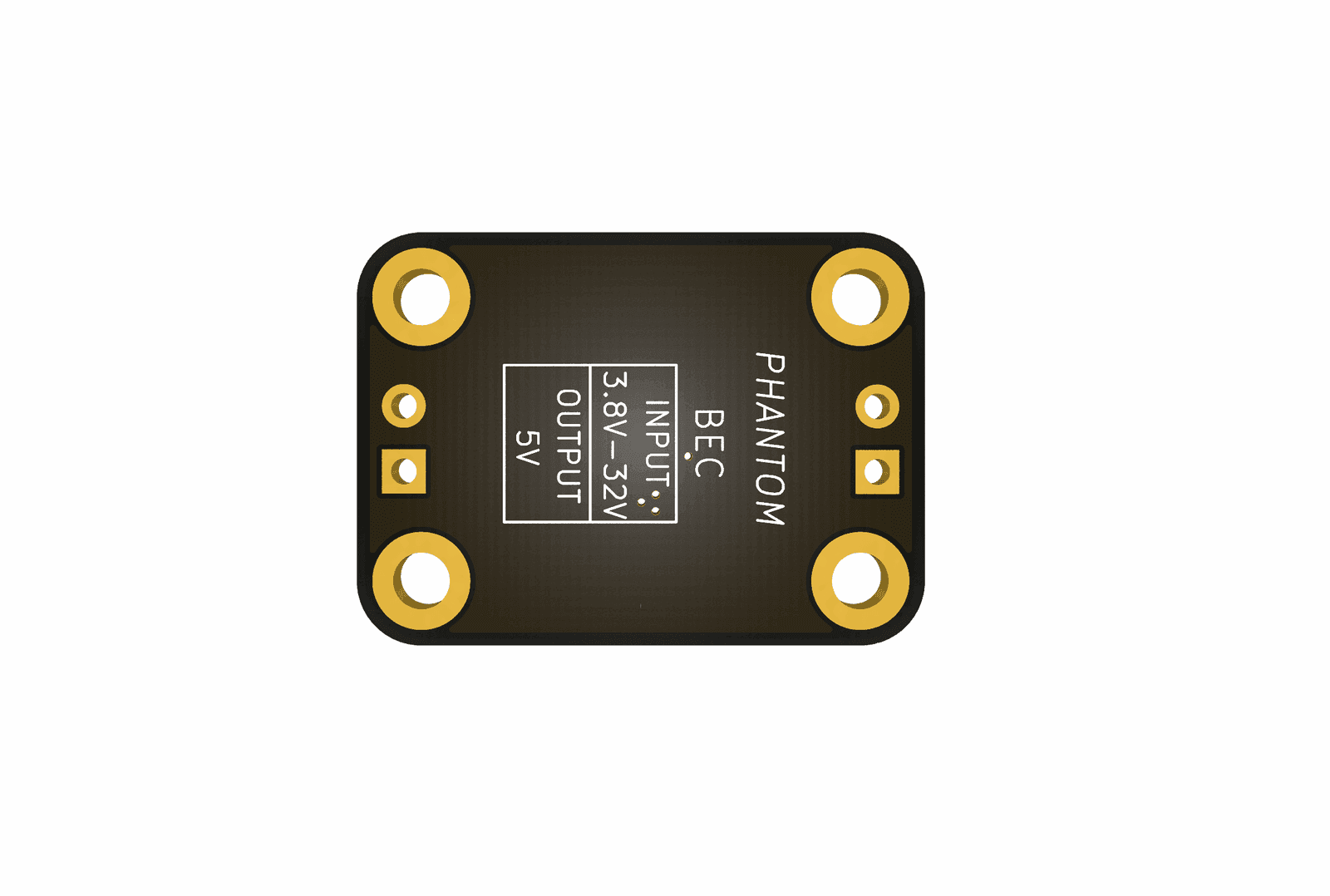

Advance BEC Power Module
High-efficiency AP63205WU synchronous buck converter for reliable regulated power delivery.
$6.00Ships in 2–4 weeks
Bulkor type a quantity — hold Shift to step by 10
Quantity: 1- Input voltage
- 3.8V–32V DC
- Max output
- 5V / 2A continuous
- Efficiency
- Up to 95%
Drones
Regulated 5V for flight controllers, cameras and RF links.
Robotics
Clean logic-side power alongside high-current actuators.
Embedded and industrial
Embedded systems and industrial electronics.
Architecture & Performance
Technical Specifications
- Buck converter
- AP63205WU
- Input voltage
- 3.8V–32V DC
- Output voltage
- Fixed 5V
- Output current
- Up to 2A continuous
- Switching frequency
- 1.1MHz
- Conversion efficiency
- Up to 95%
- Output ripple
- Low-ripple design
- Protection
- Over-current, thermal shutdown, short-circuit protection
- Form factor
- Ultra-compact, 25×20mm
